1 |
Product Type |
UHD-1.2 |
UHD-1.5 |
UHD-1.6 |
UHD-1.8 |
UHD-2.0 |
UHD-2.5 |
2 |
Pixel Pitch (mm) |
P1.25 |
P1.579 |
P1.667 |
P1.875 |
P2.0 |
P2.5 |
3 |

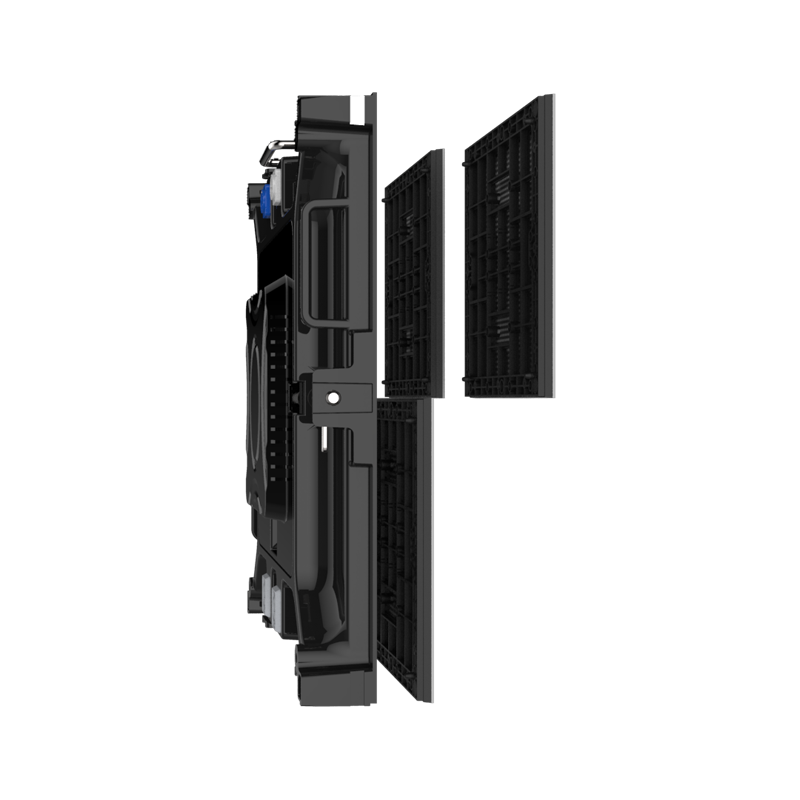

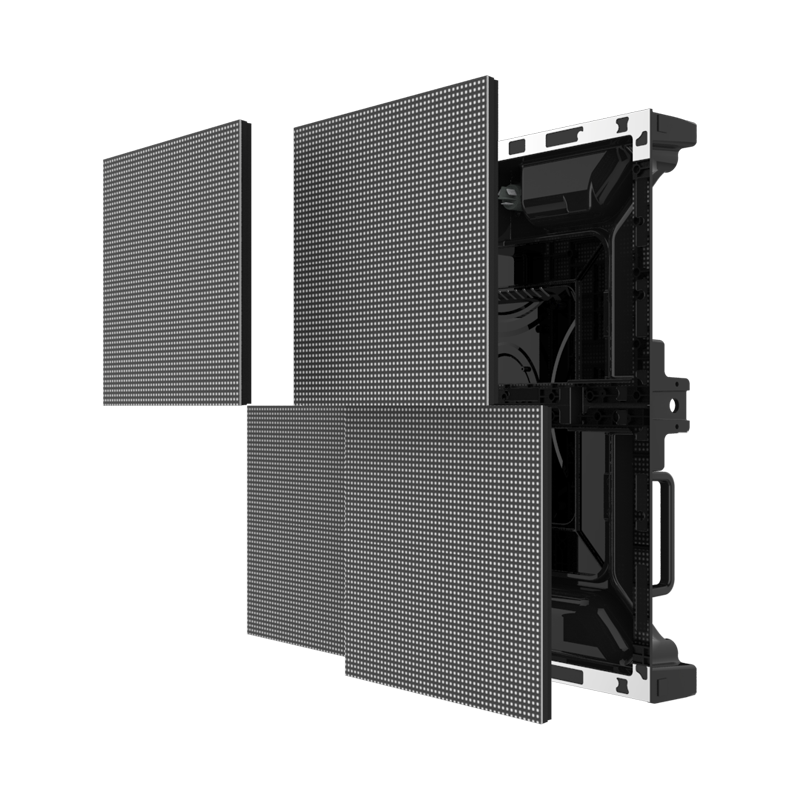

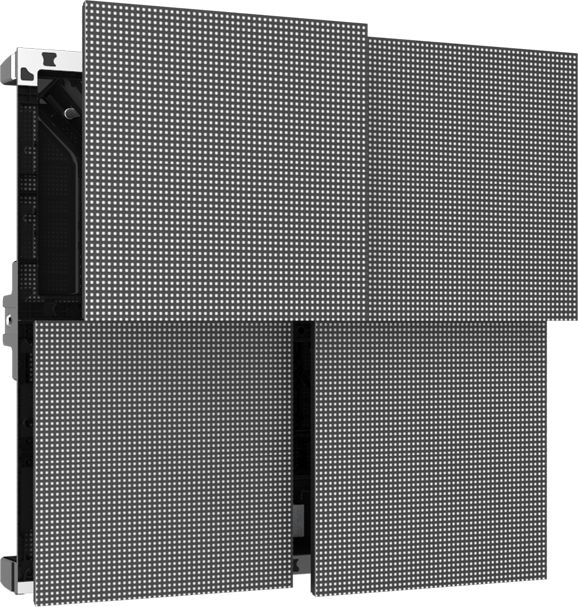

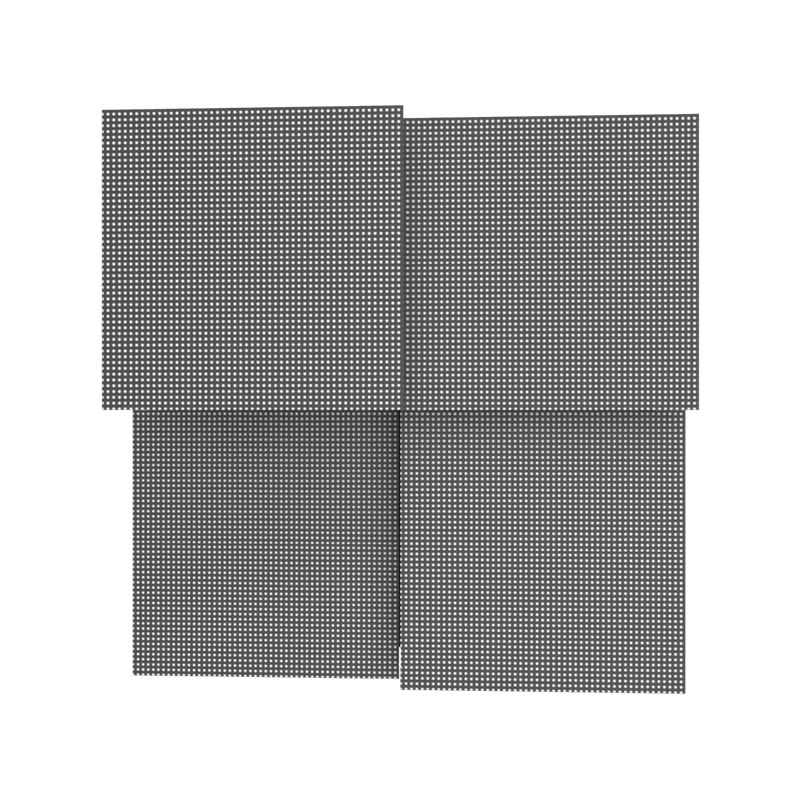

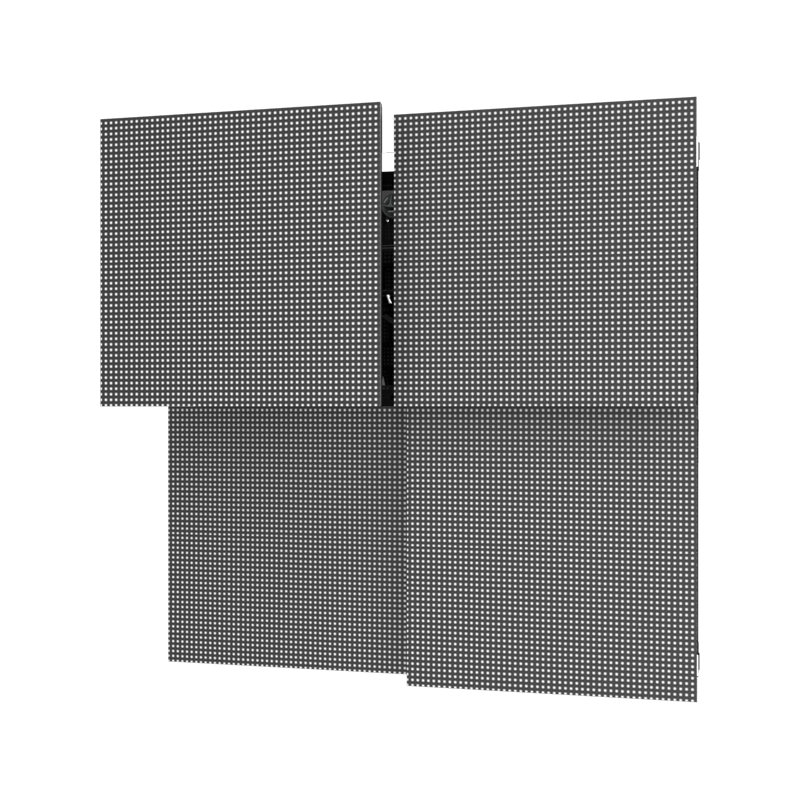

Module Size (mm) |
240X120X14 |
240X240X14 |
240X240X14 |
240X240X14 |
240X240X14 |
240X240X14 |
4 |
Module Resolution (pixels) |
192x96 |
152x152 |
144x144 |
128x128 |
120x120 |
96x96 |
5 |

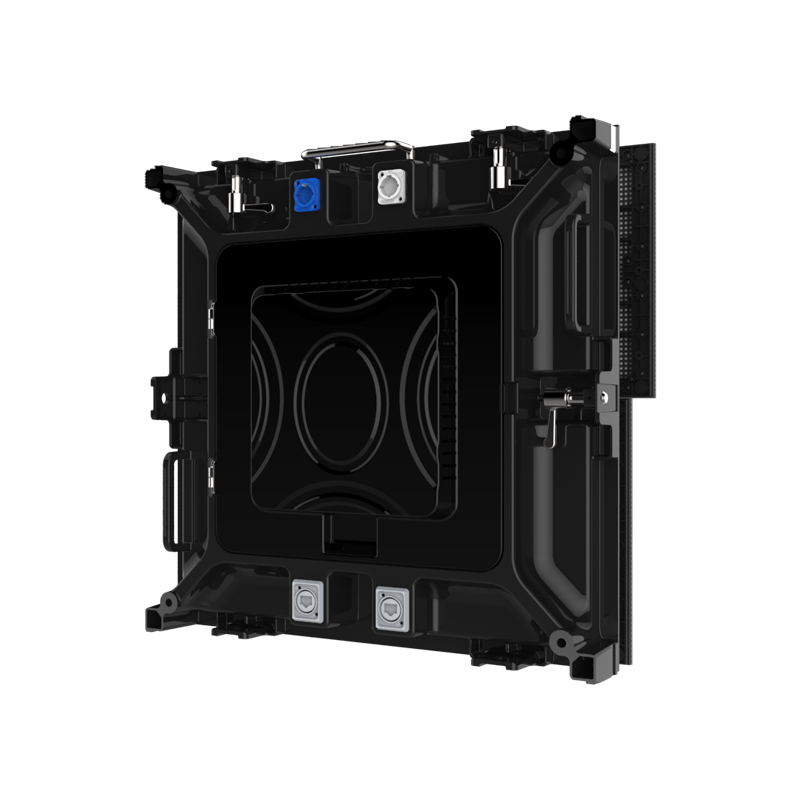

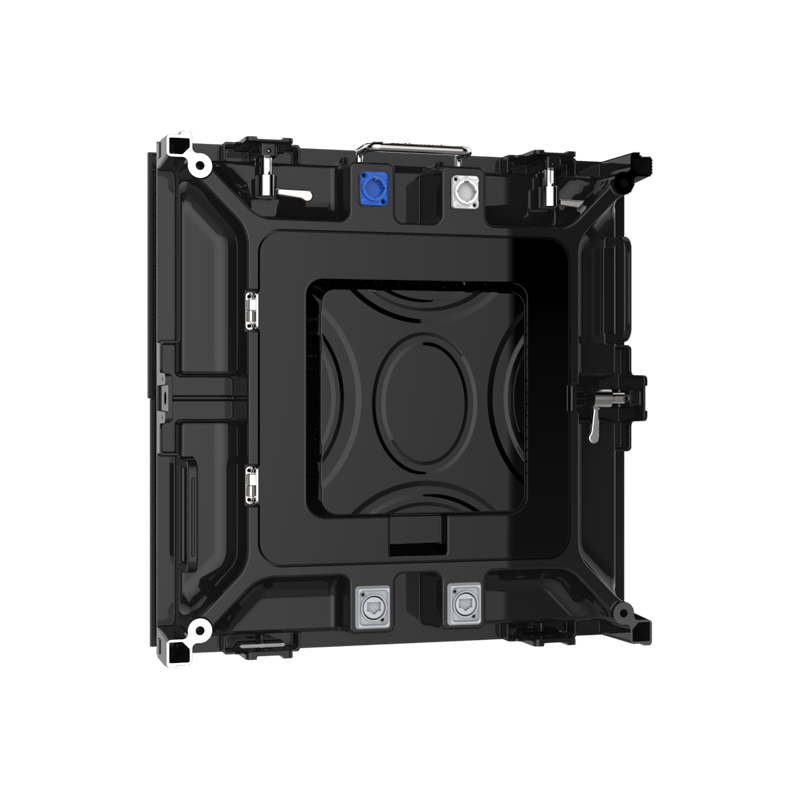

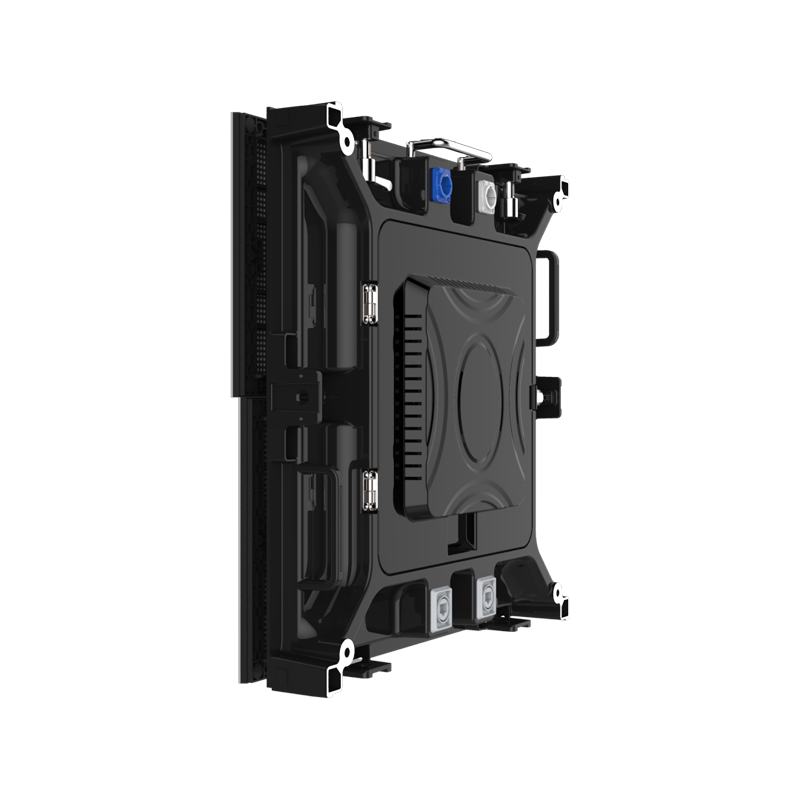

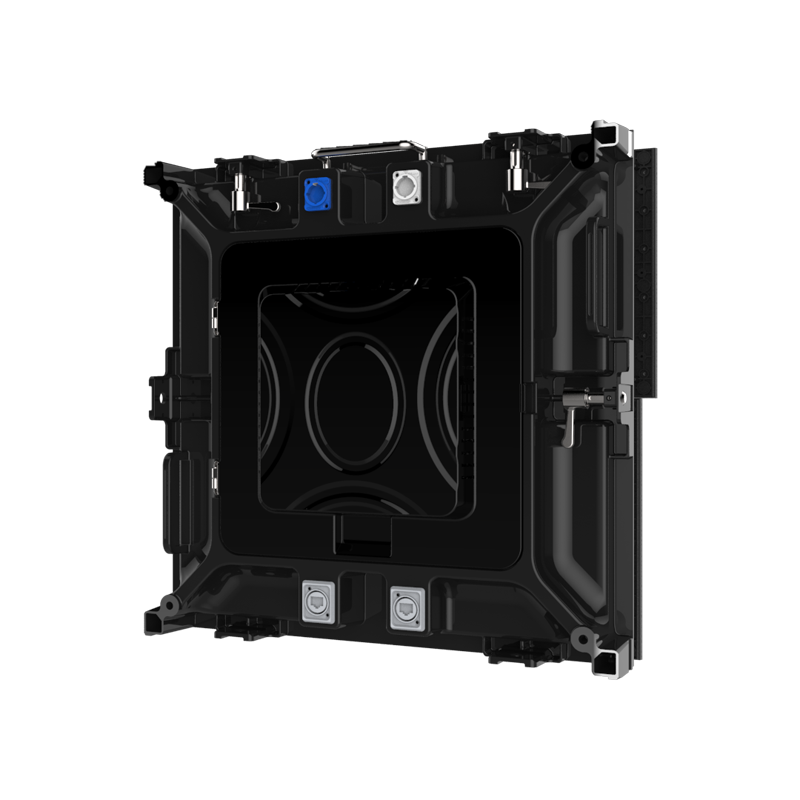

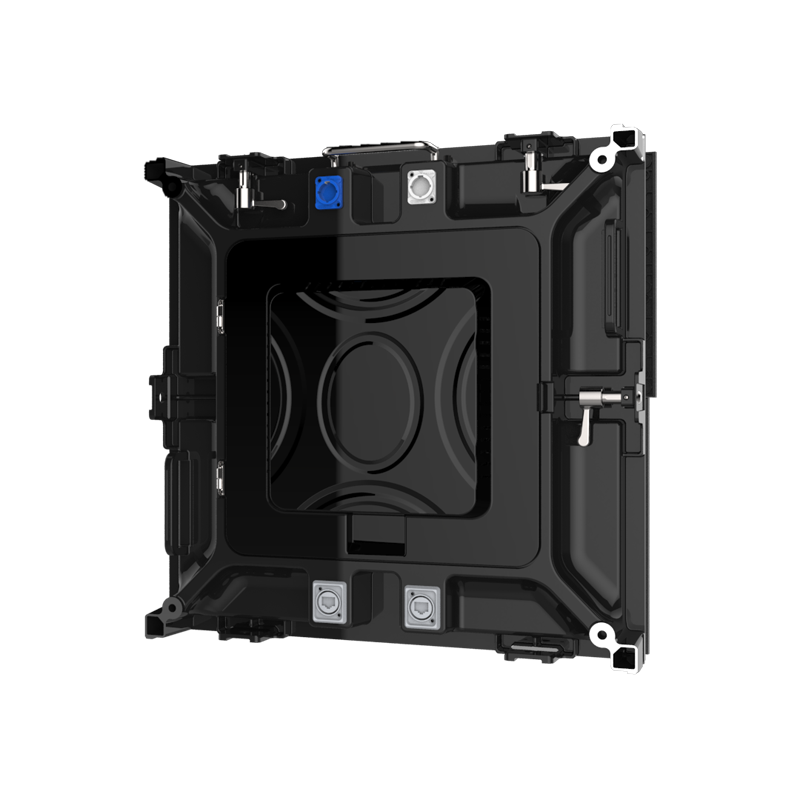

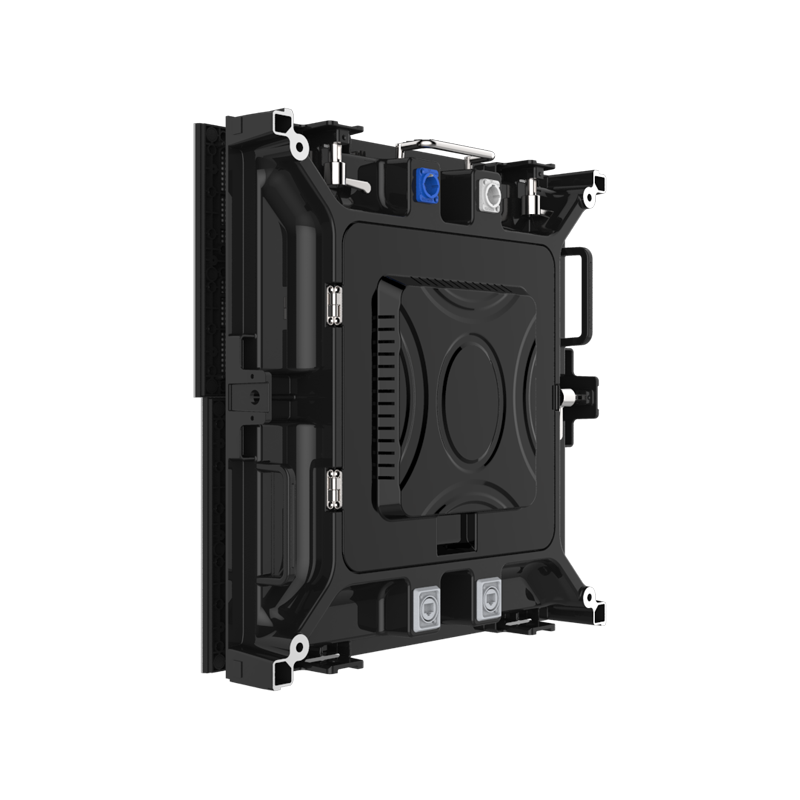

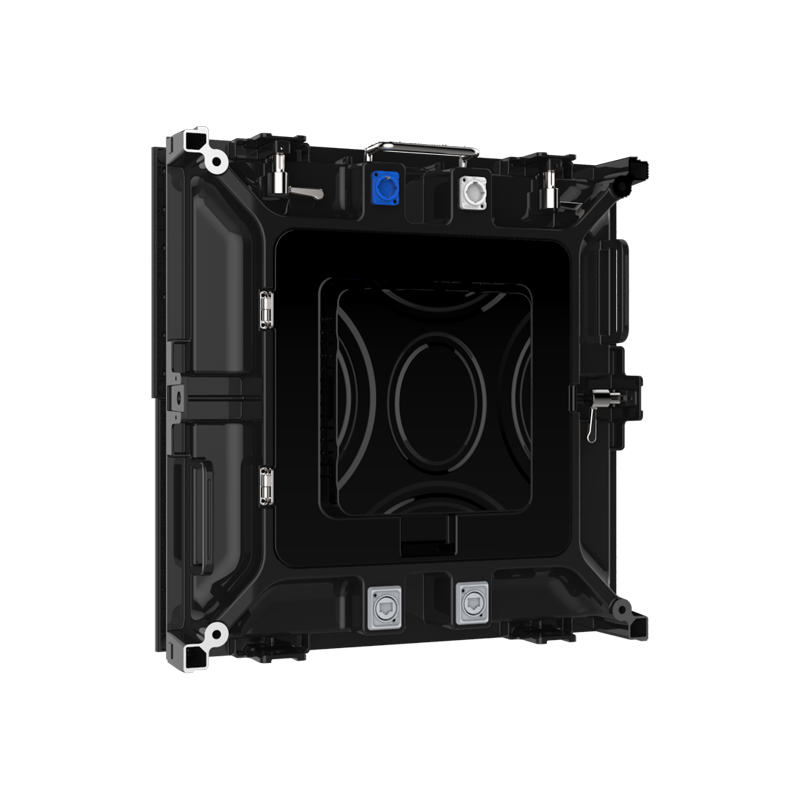

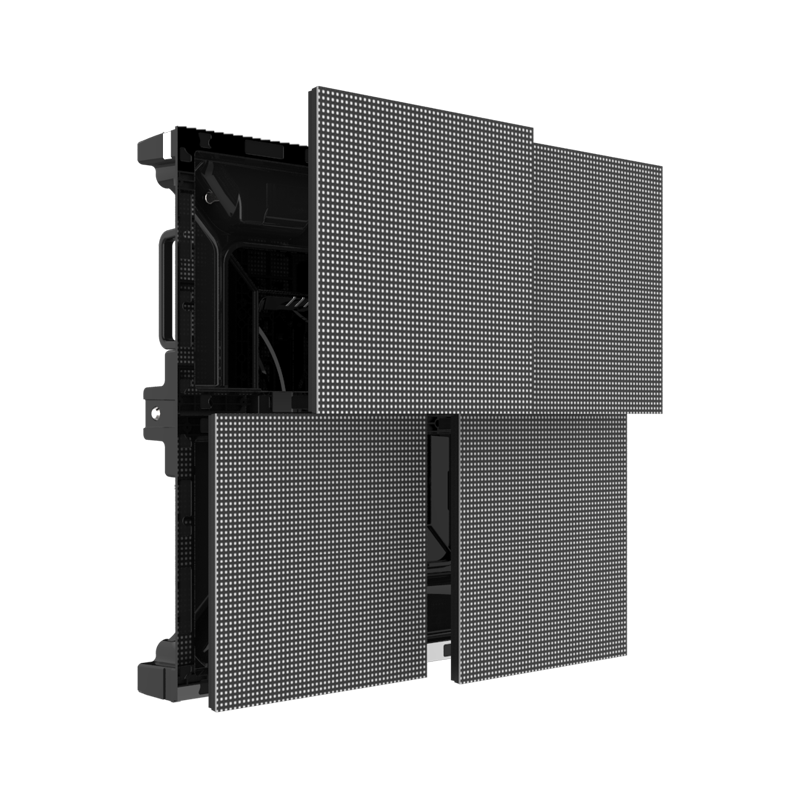

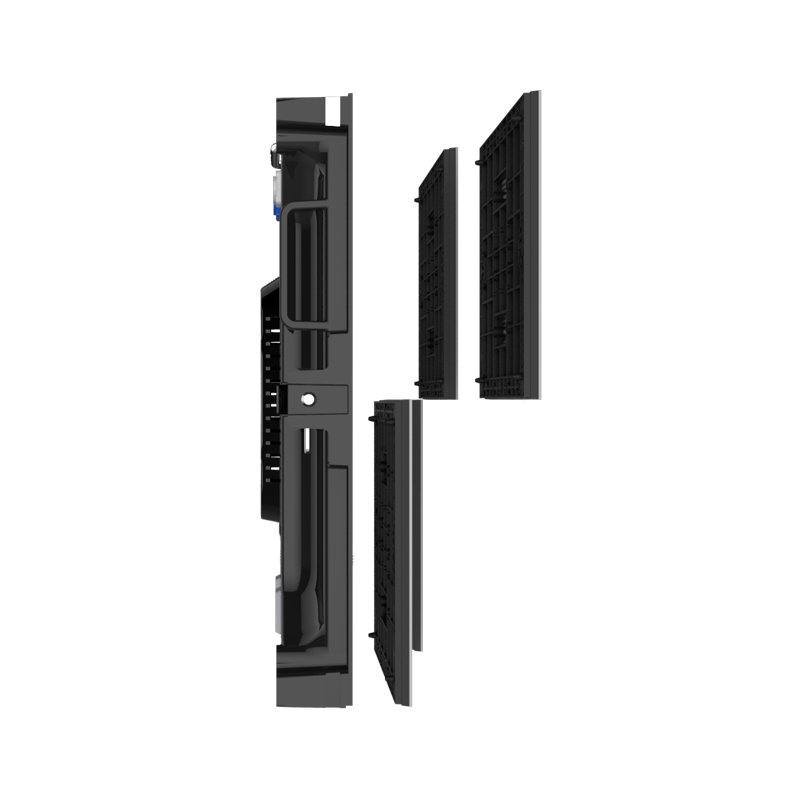

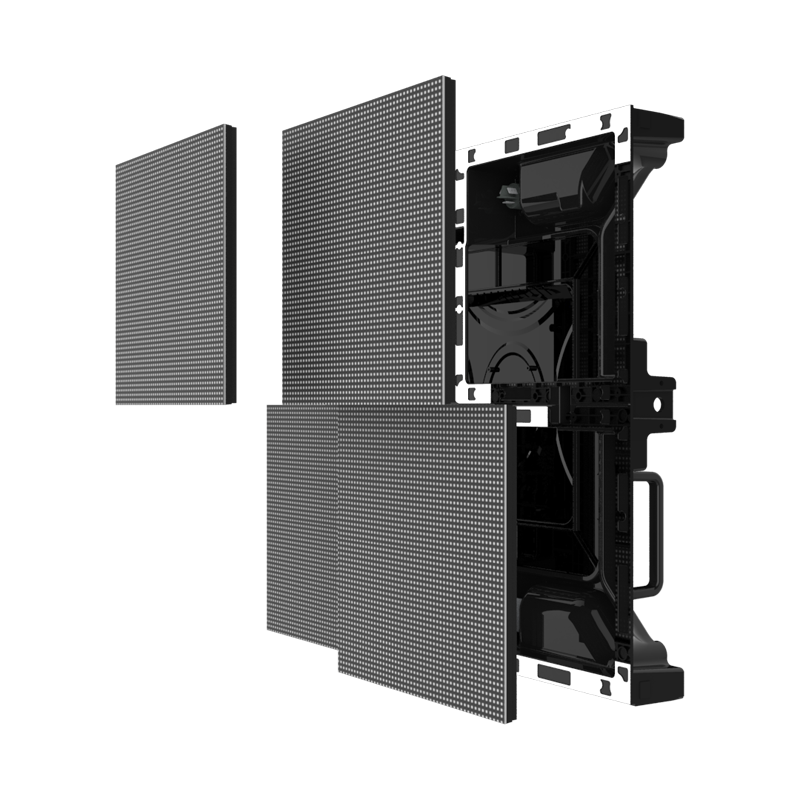

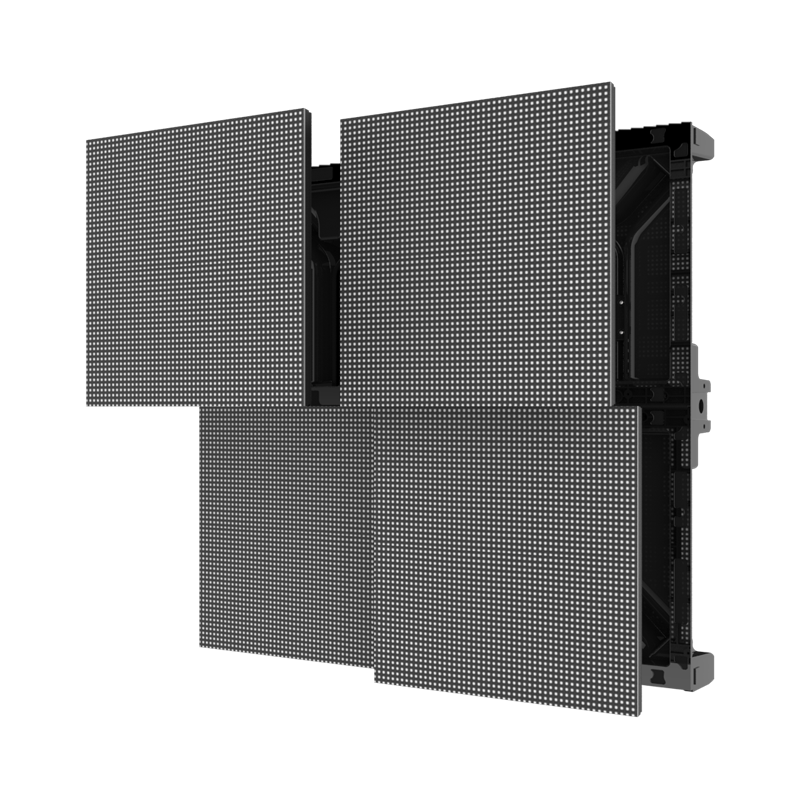

Cabinet Size (mm) |
480x480x88 |
480x480x88 |
480x480x88 |
480x480x88 |
480x480x88 |
480x480x88 |
6 |
Cabinet Resolution (pixels) |
384x384 |
304x304 |
288x288 |
256x256 |
240x240 |
192x192 |
7 |
Pixel Configuration |
1RGB |
1RGB |
1RGB |
1RGB |
1RGB |
1RGB |
8 |
LED Encapsulation |
SMD1010 |
SMD1010 |
SMD1010 |
SMD1515 |
SMD1515 |
SMD2020 |
9 |
Work Voltage（DC） |
5V |
5V |
5V |
4.2V |
5V |
4.2V |
10 |
Driver Mode |
1/26 |
1/26 |
1/24 |
1/32 |
1/30 |
1/32 |
11 |
Weight (kg) |
6.8 |
6.8 |
6.8 |
6.8 |
6.8 |
6.8 |
12 |
Physical Density (Pixels/ m2) |
640000 |
401111 |
360000 |
284444 |
250000 |
160000 |
13 |
Brightness (NIT) |
<600 |
<600 |
<600 |
<600 |
<800 |
<800 |
14 |
Gray Scale (BIT) |
14 |
14 |
14 |
14 |
14 |
14 |
15 |
Contrast ratio |
3000：1 |
3000：1 |
3000：1 |
3000：1 |
3000：1 |
3000：1 |
16 |
Refresh Rate (Hz) |
1920/3840 |
1920/3840 |
1920/3840 |
1920/2880 |
1920/3840 |
1920/3840 |
17 |
Viewing Angle（H/V） |
±140°/±140° |
±140°/±140° |
±140°/±140° |
±140°/±140° |
±140°/±140° |
±140°/±140° |
18 |
Protection Grade |
IP30 |
IP30 |
IP30 |
IP30 |
IP30 |
IP30 |
19 |
Max Power Consumption (W/ SQM) |
462 |
462 |
462 |
462 |
380 |
380 |
20 |
Average Power Consumption (W/ SQM) |
182 |
182 |
182 |
182 |
150 |
150 |
21 |
Work Temperature |
-20℃～50℃ |
-20℃～50℃ |
-20℃～50℃ |
-20℃～50℃ |
-20℃～50℃ |
-20℃～50℃ |
22 |
Working Humidity |
10%RH～95%RH |
10%RH～95%RH |
10%RH～95%RH |
10%RH～95%RH |
10%RH～95%RH |
10%RH～95%RH |
23 |
Optimal Viewing Distance (m) |
≥1.2m |
≥1.5m |
≥1.6m |
≥1.8m |
≥2m |
≥2.5m |
